Product Description

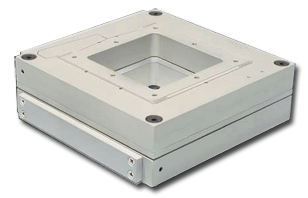

The Nano-H Series is a compact 2-axis positioning stage which provides excellent positioning performance at an economical price. The large center aperture makes the Nano-H Series ideal for applications requiring transmitted beams, or the mounting of bulky components such as multiple fibers, optics, and metrology probes. Internal position sensors utilizing proprietary PicoQ^® technology provide absolute, repeatable position measurement and picometer accuracy when operated with the Nano-Drive^® controller. The Nano-H Series is available in and can be constructed from aluminum, invar or titanium.

Compatible Software Packages:

Technical Specifications
Range of motion (Nano-H100)	100 μm x 100 μm
Range of motion (Nano-H50)	50 μm x 50 μm
Resolution (Nano-H100)	0.2 nm
Resolution (Nano-H50)	0.1 nm
Resonant Frequency (X)	500 Hz ±20%
Resonant Frequency (Y)	250 Hz ±20%
Stiffness	1.0 N/μm
θ _roll, θ _pitch (typical)	≤1 μrad
θ _yaw (typical)	≤3 μrad
Recommended max. load (horizontal)*	0.5 kg
Recommended max. load (vertical)*	0.2 kg
Body Material	Al, Invar or Titanium
Controller	Nano-Drive^®
* Larger load requirements should be discussed with our engineering staff.
