| Motorized Positioning Systems – Rotary Stages |
|

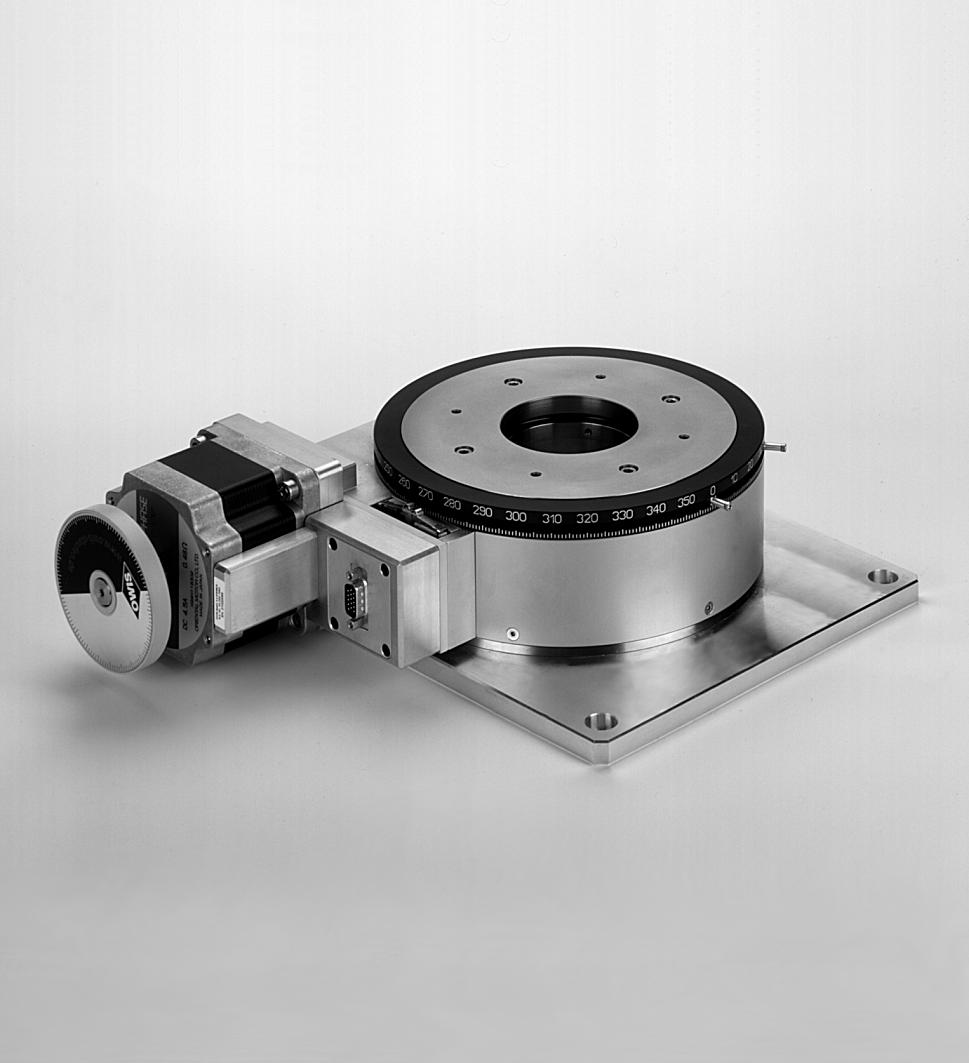

| Rotary Measuring Stage DMT 200 |
DMT 200 |
This precision rotary stage allows unlimited azimuth at resolutions of less than one angular minute. It is suitable for horizontal and vertical rotational axes.
The precision ball bearing and the worm gear are preloaded.
The rotary stage DMT 200 is available with different motors.
All aluminium parts have a top quality black anodised protective coating. |
 |
• deformation-resistant aluminium alloy
• precision angular contact ball bearing
• preloaded worm gear
• rotary table with aperture ø 70 mm
• electronic reference switch (Hall effect)
• with step or DC servo motor
|
|
| |
Part No. |
Type designation |
Product type |
|
| |
43.200.706G |
DMT 200-D70-HSM |
rotary measuring stage with rotary table, ø 70 mm aperture, with step motor |
|
|
| |
43.200.701Z |
DMT 200-D70-HDS |
rotary measuring stage with rotary table, ø 70 mm aperture, with DC motor |
|
|
| |
43.200.9000 |
ADP |
adapter plate for DMT 200 |
|
|
| |
90.999.0008 |
SST.F8 |
grease, 5 ml, within applicator |
|
| |
|
|
