| Main specifications 1) |
| Central wavelength |
1030 ±1 nm |

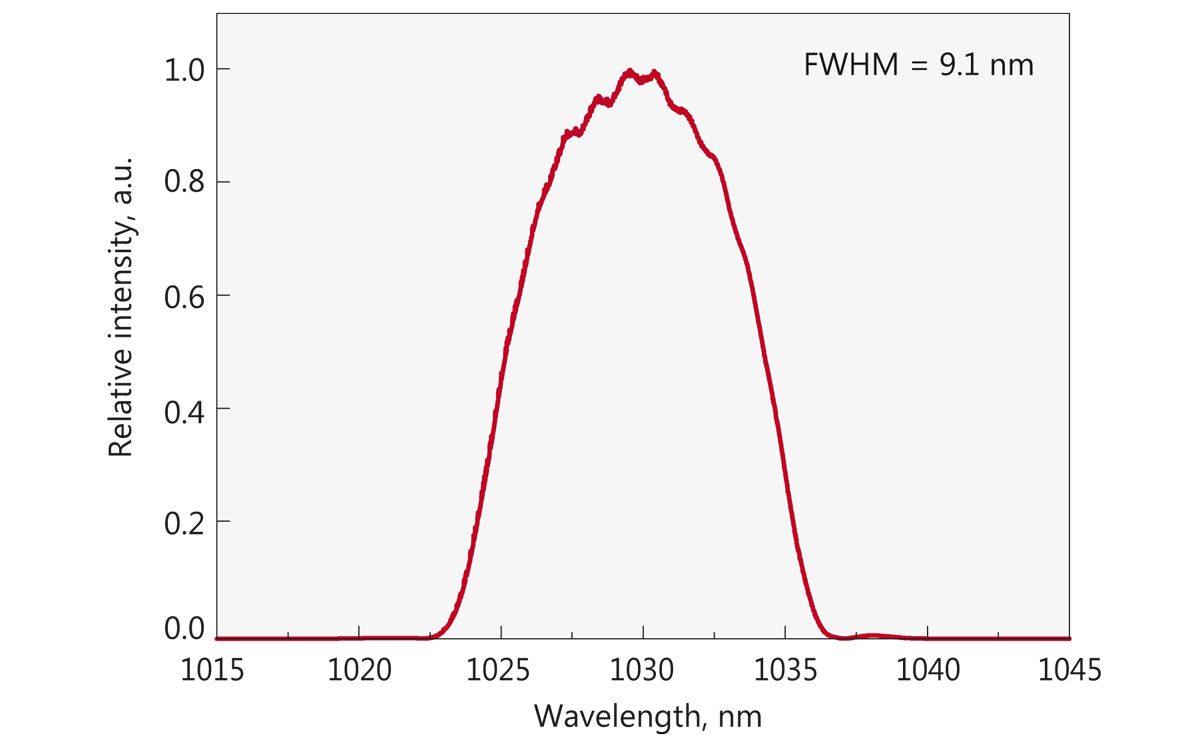

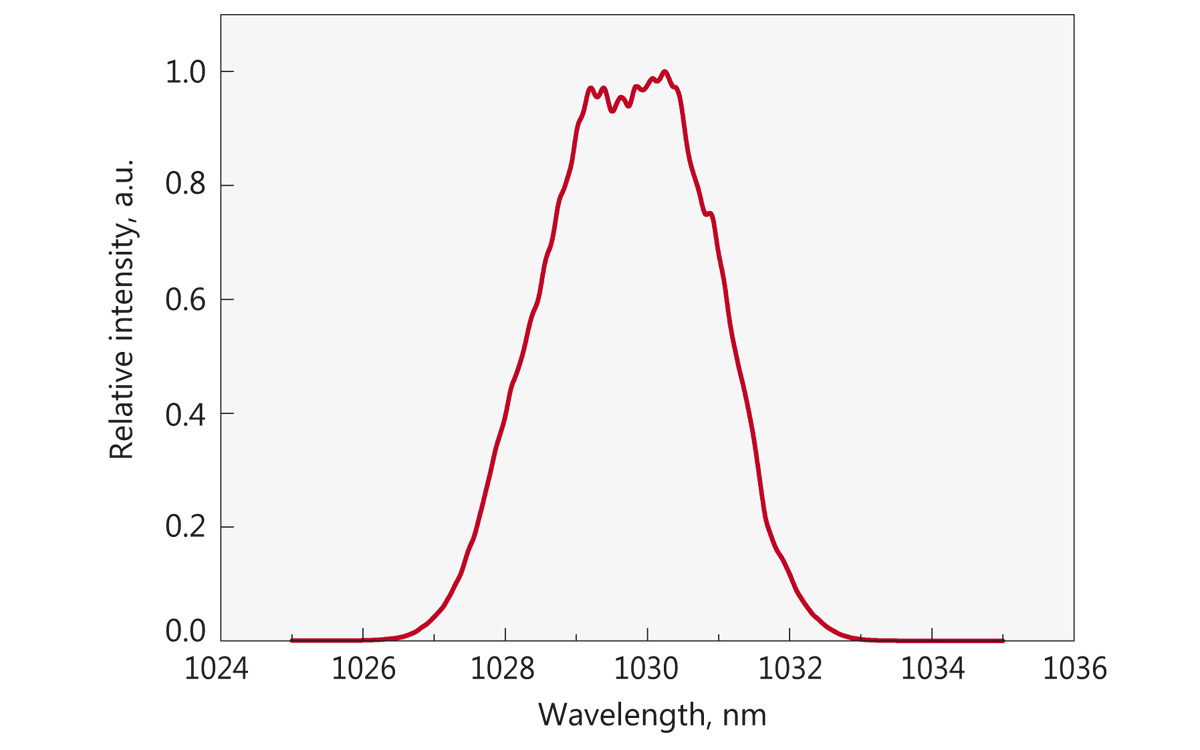

| Spectral bandwidth |
3.5 ± 0.5 nm |
8 ± 1 nm |
up to 12 nm |

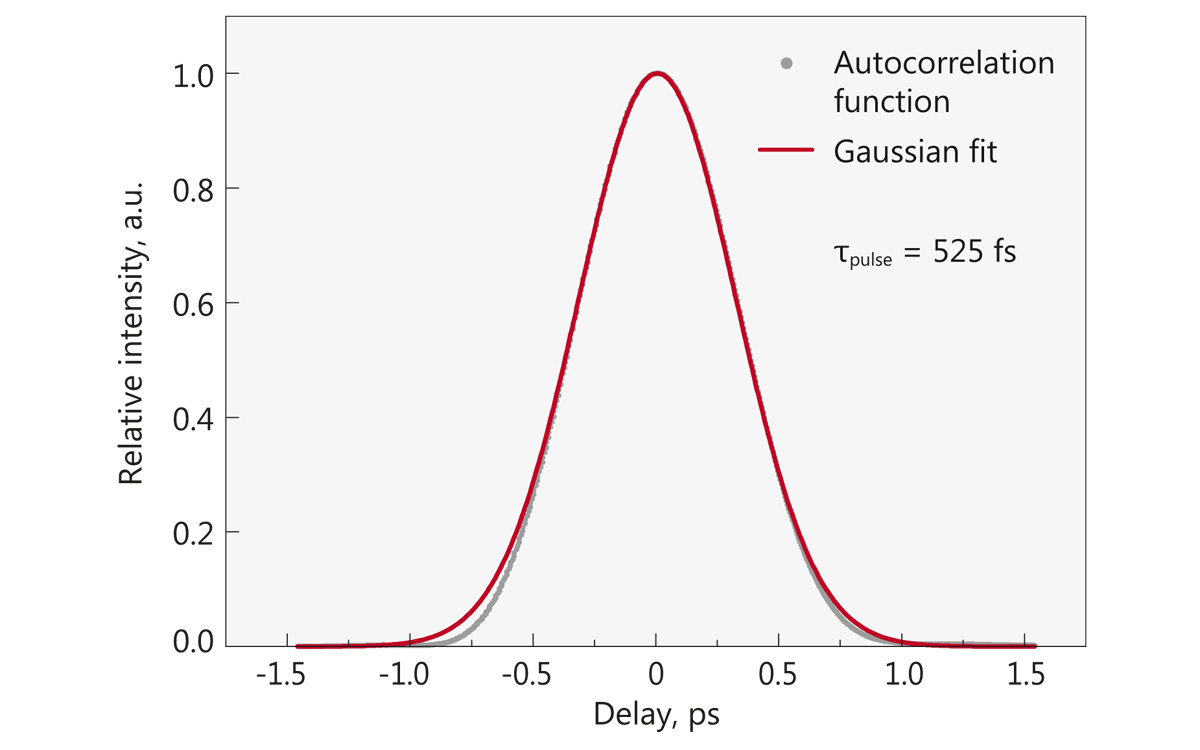

| Pulse duration |
550 ± 50 fs |
7 ± 2 ps (chirped) |
>50 ps (chirped) |

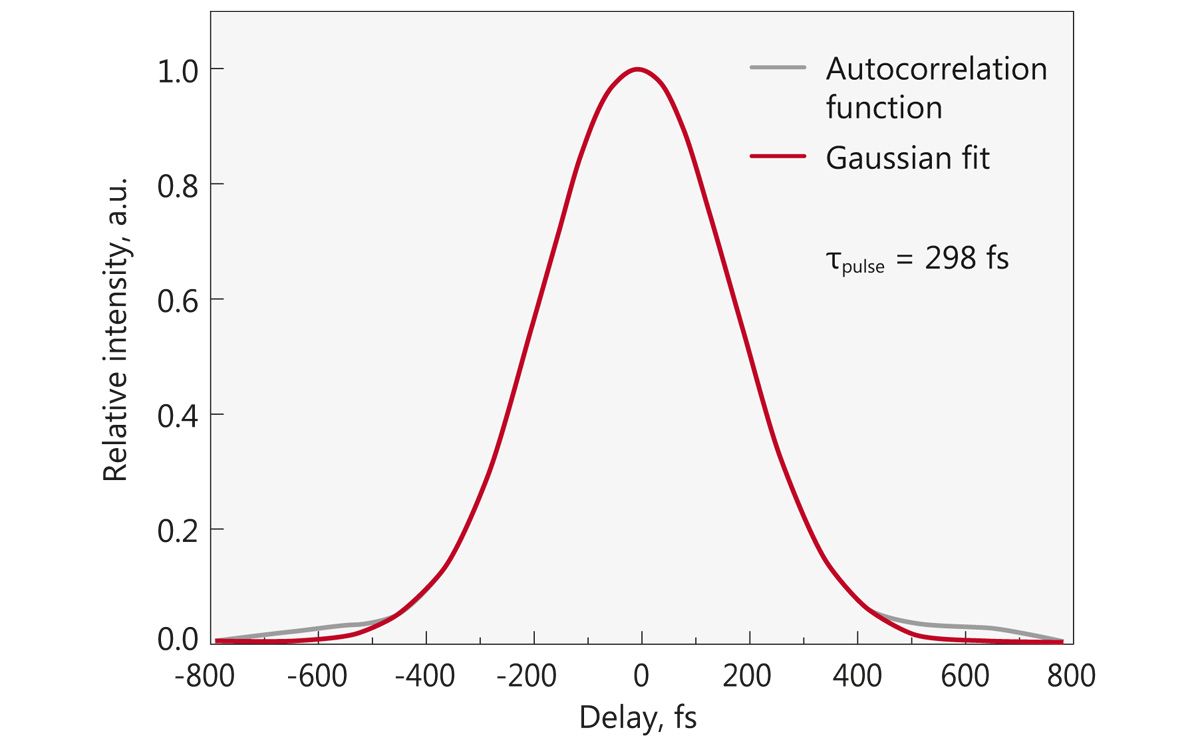

| Compressed pulse duration |
NA |
< 300 fs |
down to 300 fs |
| Chirp profile |
no chirp |
linear |
custom 2) |
| Oscillator pulse repetition rate |
52 ± 3 MHz |
| Pulse repetition rate with pulse picker 3) |
26 kHz – 52 MHz (PRR = PRROSC/N, N=1,5,6...,2000) |

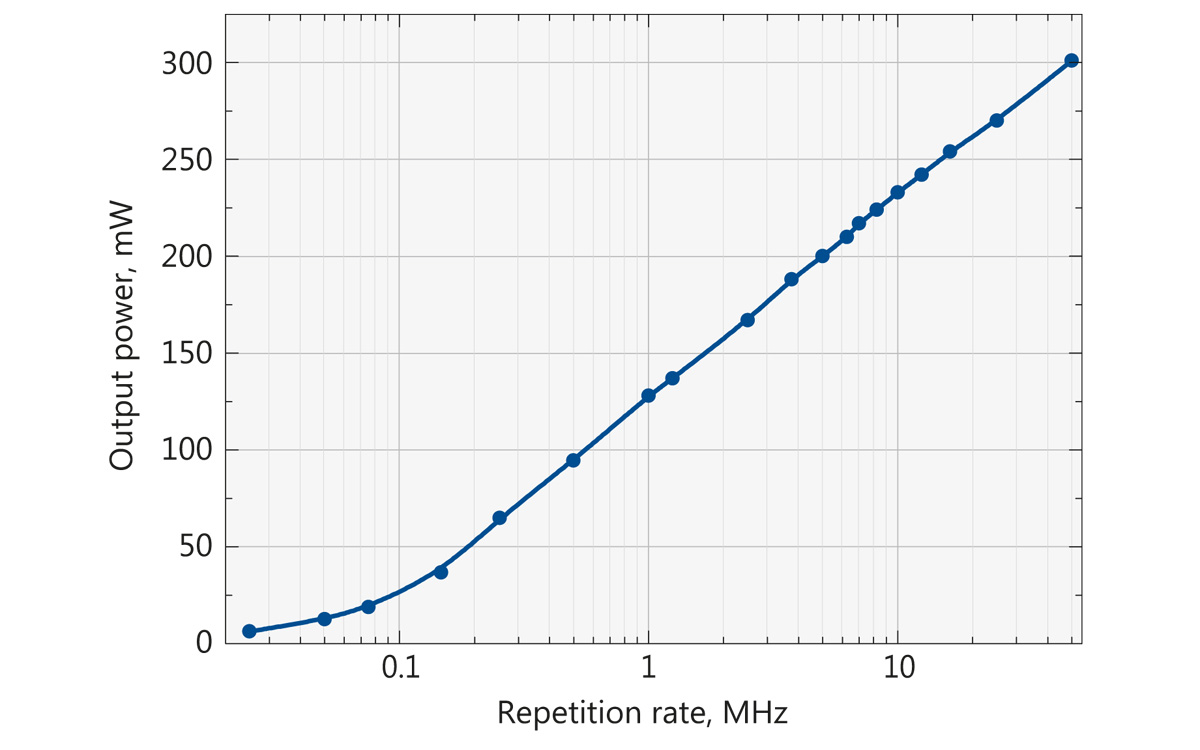

| Output power (without/with pulse picker) |
> 1 mW / >0.5 mW |
> 50 mW / >25 mW |
> 200 mW at 10 MHz
> 100 mW at 1 MHz
> 25 mW at 100 kHz |

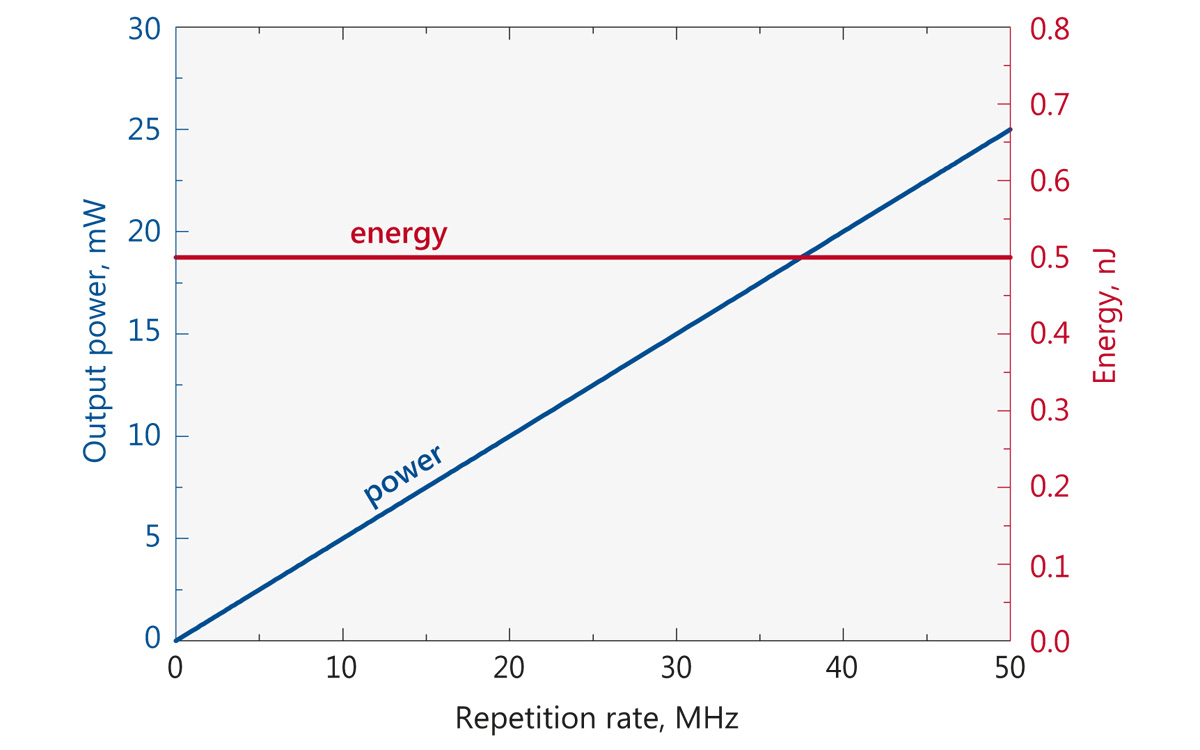

| Pulse energy (without/with pulse picker) |
> 20 pJ / > 10 pJ |
> 1 nJ / > 0.5 nJ |
> 250 nJ at repetition rates < 200 kHz |
| Polarization |
linear, > 100:1 extinction |
| Optical output |
FC/APC connector or collimator with mounting flange (optional) |

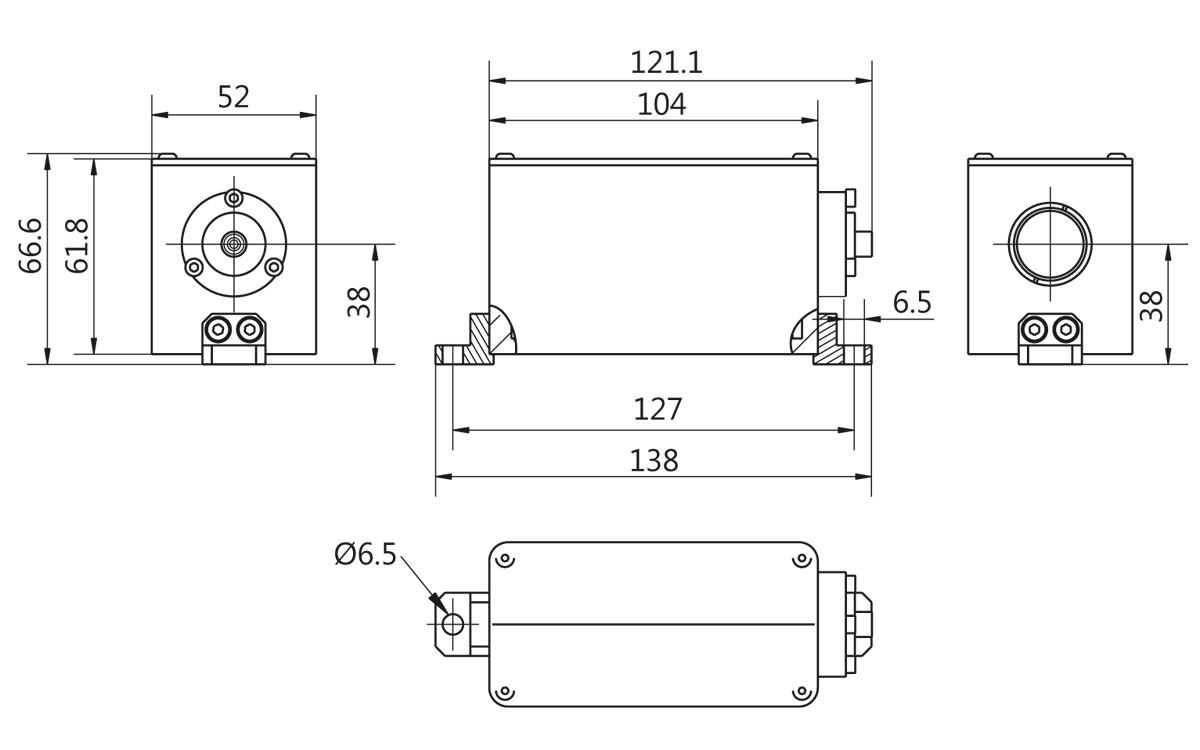

collimator and isolator node 4) |
| Umbilical |
3 m length armored cable Ø5 mm 5) |
| Beam diameter |
0.9 ± 1 mm or 1.3 ± 0.1 mm or 2.1 ± 0.2 mm |
| Beam height |
NA |
38 mm |
| Beam quality |
M2 < 1.1 |
| Pulse train monitoring |
photodiode output for oscillator train, TTL synch pulse for laser output (when pulse picker included) |

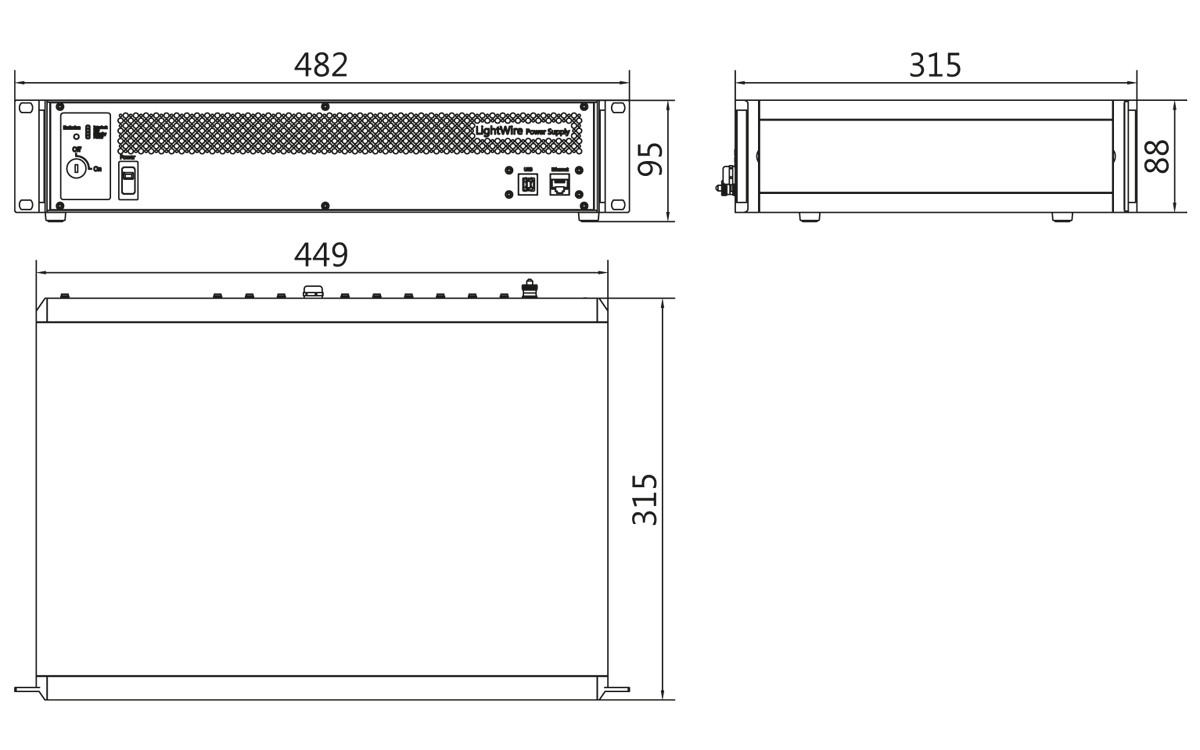

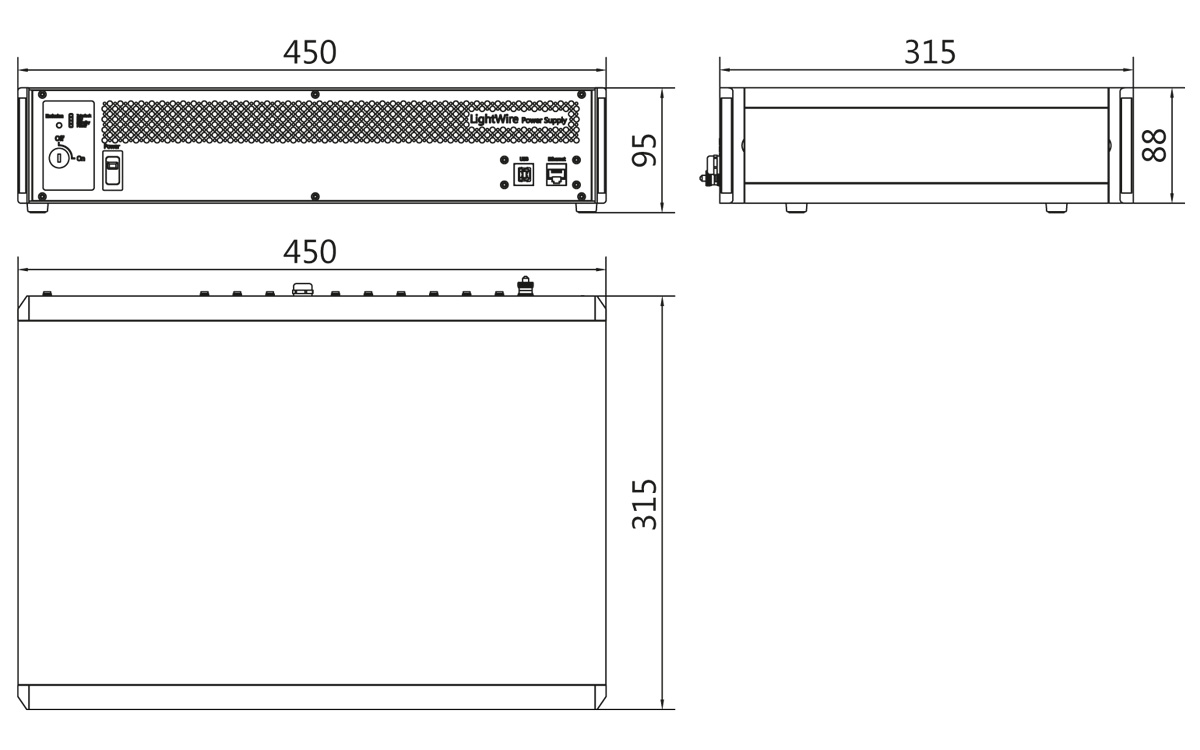

| Dimensions of control unit (L×W×H) |
315 × 450 × 95 (stand alone) or
315 × 482 × 95 (19" rack mountable) |

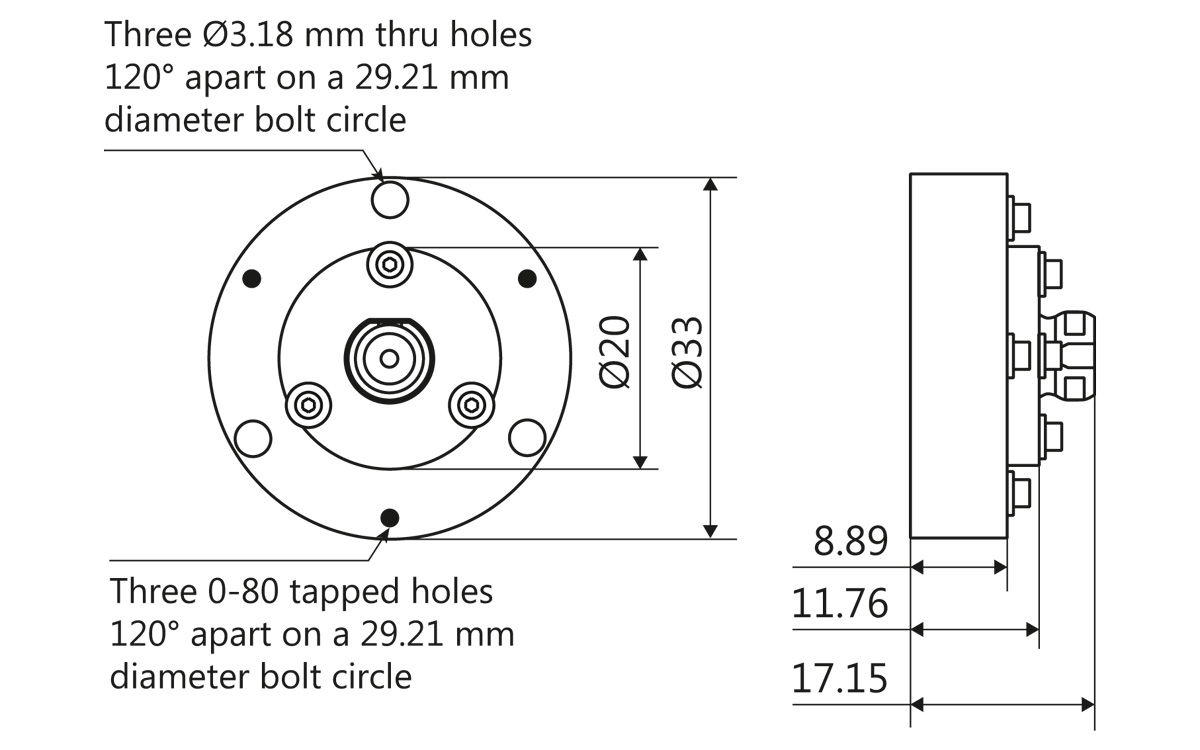

| Dimensions of collimator (D×L) |
Ø33.02 × 11.76 mm |
| Weight |
< 10 kg |
| Control interface |
USB, CAN, RS232, LAN (WLAN optional) |
Power supply (AC/DC adapter included)
|
100 – 240 V, 50 – 60 Hz AC |
| Power consumption |
maximal 230 W (typical 60 W) |
| Operating conditions |
10 – 30 °C, humidity – not condensing |
