High Energy Broadly Tunable DPSS Lasers
Download
datasheet
  • Integrated OPO system
  • Diode pumped
  • Ultrabroad tuning range from 192 to 2600 nm
  • Up to 18 mJ in VIS
  • At 100 Hz pulse repetition rate

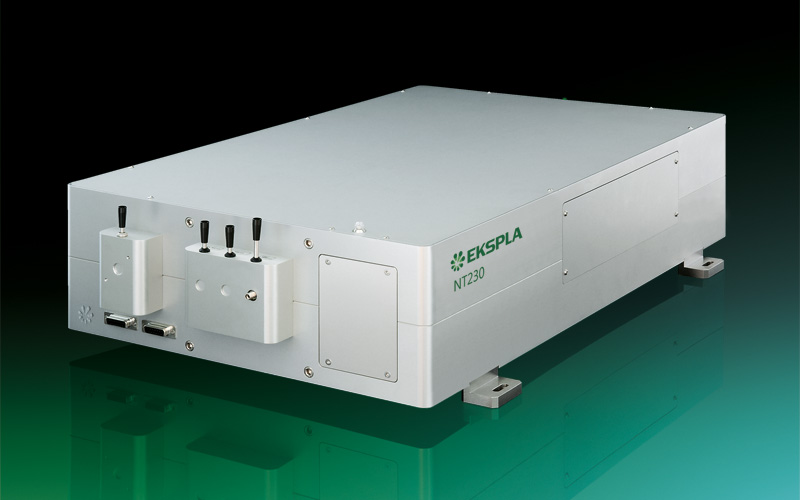

NT230 series High Energy Broadly Tunable DPSS Lasers

Features & Applications

FEATURES

  • Integrates DPSS pump laser and OPO into a single housing
  • Hands-free no-gap wavelength tuning from 192 to 2600 nm
  • High, up to 15 mJ pulse energy from OPO
  • 100 Hz pulse repetition rate
  • More than 2 mJ output pulse energy in UV
  • Less than 5 cm⁻¹ linewidth
  • 3 – 5 ns pulse duration
  • Remote control pad
  • PC control via USB port (RS232 is optional) and LabVIEW™ drivers
  • Optional separate output port for 532/1064 nm beam

APPLICATIONS

  • Laser-induced fluorescence
  • Flash photolysis
  • Photobiology
  • Remote sensing
  • Metrology
  • Non-linear spectroscopy

Description & Options

NT230 series lasers deliver high up to 10 mJ energy pulses at 100 Hz pulse repetition rate, tunable over a broad spectral range. Integrated into a single compact housing, the diode pumped Q-switched Nd:YAG laser and Optical Paramteric Oscillator (OPO) offers hands‑free, no-gap tuning from 192 to 2600 nm. With its 100 Hz repetition rate, the NT230 series laser establishes itself as a versatile tool for many laboratory applications, as laser induced fluorescence, flash photolysis, photobiology, metrology, remote sensing, etc.

Due to the innovative diode‑pumped design, NT230 series lasers features maintenance-free laser operation for an extended period of time and improved stability (compared with flash-lamp pumped counterparts).

NT230 series systems can be controlled from a user-friendly remote control pad or/and a computer using supplied LabVIEW™ drivers. The control pad allows easy control of all parameters and features on a backlit system display that is easy to read even with laser safety eyewear.

Due to DPSS pump source, the laser requires little maintenance. It is cooled by a built-in chiller, which further reduces running costs. An OPO pump energy monitor allows monitoring of pump laser performance. A standard feature includes a separate output port for the 355 nm pump beam.

ACCESSORIES AND OPTIONAL ITEMS

Option Features
-SH Tuning range extension in UV range (210 – 405 nm) by second harmonics generation
-SF Tuning range extension in 300 – 405 nm range by sum-frequency generation
-SH/SF Tuning range extension in 210 – 405 nm range by combining second harmonics and sum-frequency generator outputs for maximum possible pulse energy
-DUV Deep UV option in 192 – 210 nm
-H, -2H 1064 nm or 532 nm output via separate port
-FC Fiber coupled output in 350 – 2000 nm range
-Attn/FC Fiber coupled attenuated output
-SCU Spectral filtering accessory for improved spectral purity of pulses

Specifications

Model 1) NT230-50 NT230-100
OPO
Wavelength range
Signal 405 – 710 nm
Idler 710 – 2600 nm
SH and SF 210 – 405 nm 2)
DUV 192 – 210 nm
Pulse energy 3)
OPO 15 mJ 9 mJ
SH and SF 4) 2 mJ 1.5 mJ
DUV 0.2 mJ at 200 nm
Pulse repetition rate 5) 50 Hz 100 Hz
Pulse duration 6) 2 – 5 ns
Linewidth 7) < 5 cm-1
Tuning resolution
Signal 1 cm-1
Idler 1 cm-1
SH/SF/DUV 2 cm-1
Polarization
Signal horizontal
Idler vertical
SH/SF/DUV horizontal
OPO beam divergence 8) < 2 mrad
Typical beam diameter 9) 4 mm
Pump laser
Pump wavelength 10) 355 nm
Typical pump pulse energy 11) 50 mJ 35 mJ
Pulse duration 6) 4 – 6 ns at 1064 nm
Physical characteristics
Unit size (W × L × H) 451 × 640 × 152 mm
Power supply size (W × L × H) 365 × 395 × 290 mm
Umbilical length 2.5 m
Operating requirements
Cooling with chiller
Room temperature 15 – 30 °C
Relative humidity 20 – 80 % (non-condensing)
Power requirements 208 or 240 V AC, single phase 50/60 Hz
Power consumption < 1 kVA
  1. Due to continuous improvement, all specifications are subject to change. Parameters marked typical are illustrative. They are indications of typical performance and will vary with each unit we manufacture. Unless stated otherwise, all specifications are measured at 450 nm.
  2. Separate –SH and –SF options are available.

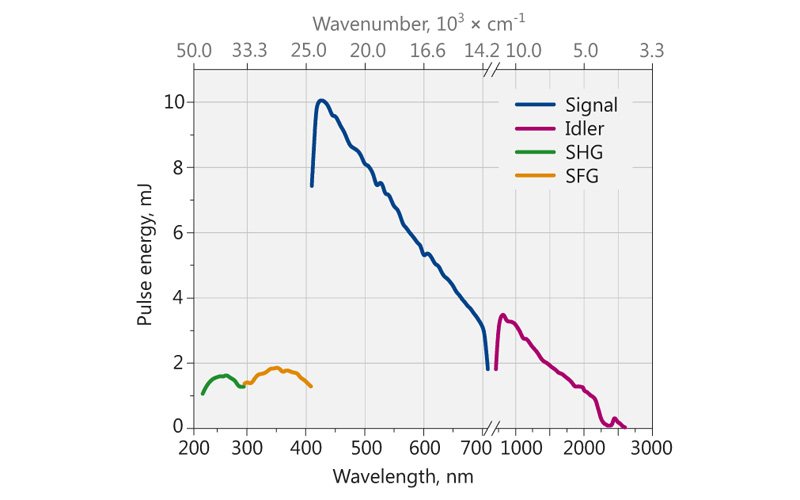

  3. See tuning curves for typical outputs at other wavelengths.
  4. Measured at 260 nm and 340 nm wavelengths
  5. Inquire for other pulse repetition rates.
  6. FWHM measured with photodiode featuring 1 ns rise time and 300 MHz bandwidth oscilloscope.
  7. Linewidth is <8 cm⁻¹ for 210 – 405 nm range.
  8. Full angle measured at the FWHM level at 450 nm.
  9. Beam diameter is measured at 450 nm at the 1/e2 level and can vary depending on the pump pulse energy.
  10. Separate output port for the 3rd harmonics beam is standard. Output ports for other harmonics are optional.
  11. The pump laser pulse energy will be optimized for best OPO performance and can vary with each unit we manufacture.

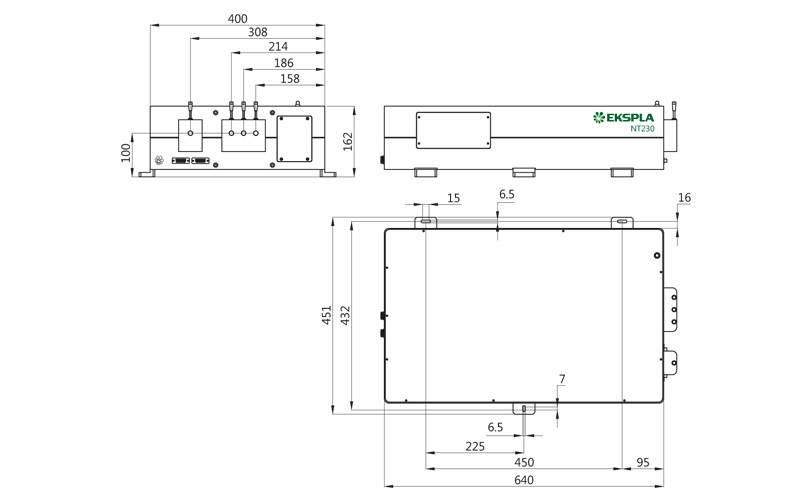

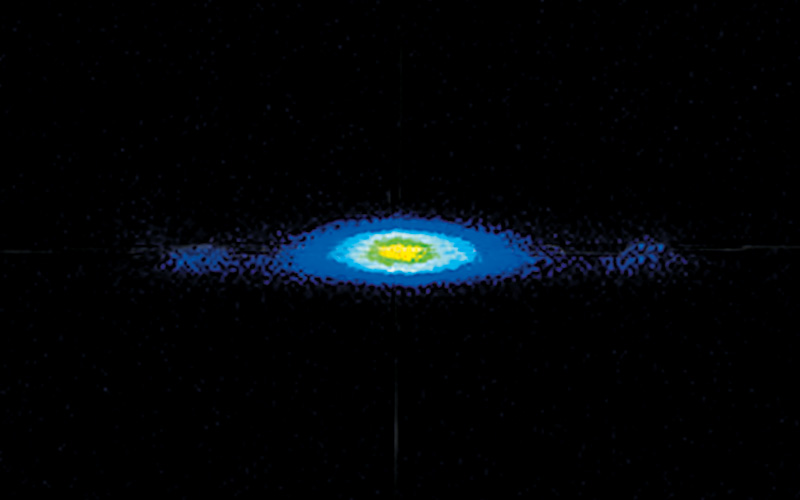

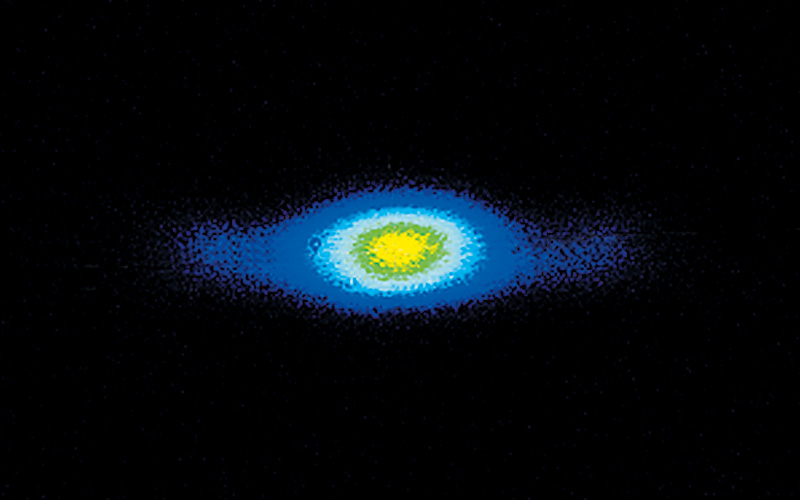

Performance & Drawings

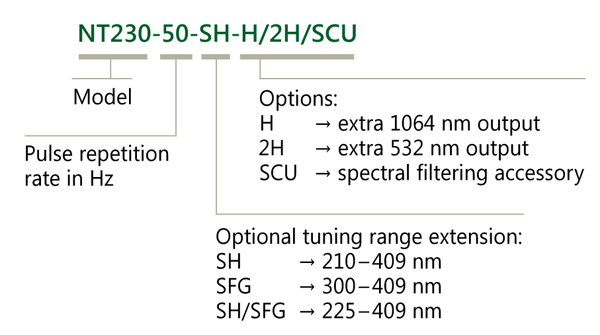

Ordering information
