PL2241 系列高能量皮秒锁模Nd:YAG 激光器

Features

Up to 100 mJ per pulse at 1064 nm
< 30 ps pulse duration (<25 ps optional)
Excellent pulse duration stability
Up to 250 Hz repetition rate
Streak camera triggering option with < 0.1 ns optical jitter
Hermetically sealed DPSS master oscillator
Excellent beam pointing stability
Thermo-stabilized second, third or fourth harmonic options
PC control by RS232 and LabView drivers
Remote control via keypad

Applications

OPG pumping
Nonlinear spectroscopy
SFG/SHG spectroscopy
Material research
Time-resolved spectroscopy
Remote laser sensing
Satellite ranging
Other spectroscopic and nonlinear optics experiments
Your application is welcome…

Unique rugged and compact design establishes PL2241 series picosecond lasers as versatile tool for research applications.

The heart of the system is diode pumped solid state (DPSS) master oscillator placed in hermetically sealed monolithic block. Combined, the DPSS master oscillator and flash lamp pumped regenerative amplifier offer reliable performance and hands free operation.

Up to 250 Hz repetition rate speeds up data acquisition and processing in spectroscopic systems.

Efficient power amplifier and harmonic generators

The optimized multiple-pass power amplifier with pulse polarization rotation between the passes efficiently extracts the energy stored in the rod, at the same time, maintaining near Gaussian beam profile and low wavefront distortion.

Angle-tuned KD*P and KDP crystals mounted in thermostabilised ovens are used for second, third and fourth harmonic generation. Harmonics separators ensure high spectral purity of each harmonic directed to different output port.

Simple and convenient laser control

For customer convenience the laser is controlled through its RS 232 type PC interface with LabView drivers (included) or a user-friendly remote control pad. The remote pad allows easy control of all the parameters and features a backlit display that is easy to read even while wearing laser safety eyewear.

Build in energy monitors ensure easy operation control. Data from the energy monitor can be seen on the remote keypad or PC monitor via the LabView drivers. LabView drivers, supplied together with the laser, enables long term monitoring of the output energy.

Software can protect optics from the accidental increases of pulse energy, by providing user with alerting messages and by stopping the laser, when the pulse energy exceeds the preset level.

PL2241 series picosecond Nd:YAG laser

Inside view of the PL2241
series picosecond Nd:YAG lasers

Typical beam profile of
the PL2241 series picosecond Nd:YAG lasers

Download brochure (226 KB)

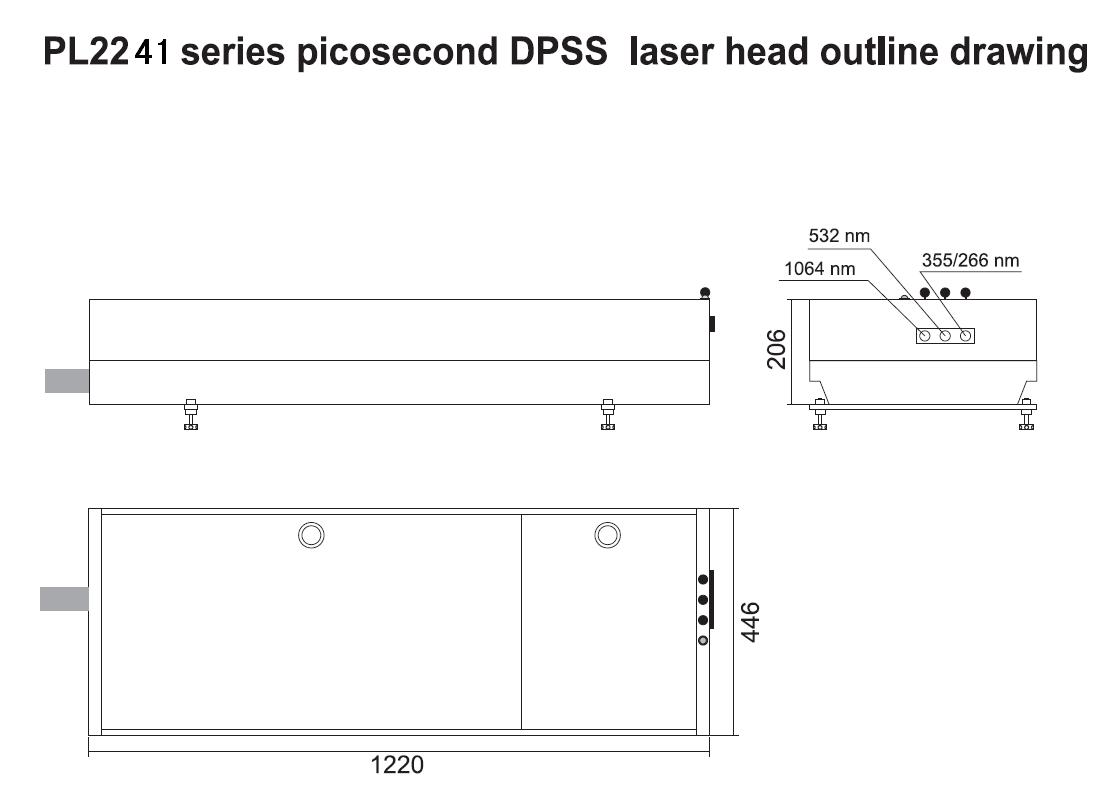

Download laser head outline drawing (53 KB)

Specifications ¹⁾

Model	PL2240	PL2241	PL2241A	PL2241B	PL2241C
Pulse energy, mJ
At 1064 nm	4	30	50	80	100
At 532 nm ²⁾	1.8	15	25	40	50
At 355 nm ³⁾	1.2	10	15	24	30
At 266 nm ⁴⁾	0.7	3	7	10	12
Pulse energy stability (Std. Dev), %⁵⁾
At 1064 nm	<1.5

At 532 nm	<3
At 355 nm	<5
At 266 nm	<7
Pulse duration (FWHM), ps ⁶⁾	<30
Pulse duration stability, ±ps ⁷⁾	1.0
Repetition rate Hz ⁸⁾	250	50 or 10	50, 30 or 10	20 or 10	10
Polarization	linear, vertical, >100:1
Post-pulse contrast	>200:1

Triggering mode	Internal/External
Typical SYNC OUT pulse jitter, ns ⁹⁾	<0.25
Typical SYNC OUT pulse delay, ns ¹⁰⁾	400
Beam divergence, mrad ¹¹⁾	<0.8	<0.5	<0.5	<0.5	<0.5
Beam pointing stability, μrad ¹²⁾	<100
Typical beam diameter, mm ¹³⁾	~4	~6	~8	~10	~12
Typical Warm-up time, min	30

Physical characteristics
Model	PL2240	PL2241	PL2241A	PL2241B	PL2241C
Laser head size (W x L x H), mm	446x1220x260
Electric cabinet size (W x H x L), mm	550x860x600	550x550x600	550x550x600	550x550x600	550x550x600
Pulse duration (FWHM), ps	<80
Operating requirements
Model	PL2240	PL2241	PL2241A	PL2241B	PL2241C
Water consumption (max 20° C), l/min	<8

Room temperature, °C	18-30
Relative humidity (non-condensing), %	20-80
Mains requirements¹⁴⁾	Three phase, 208 or 380 VAC, 20 A, 50 or 60 Hz
Power, kVa	<2.5	<3	<3	<3	<3
¹⁾ All specifications are subject to change without notice. The parameters marked typical are not specifications. They are indications of typical performance and will vary with each unit we manufacture. Unless stated otherwise all specifications are measured at 1064 nm. ²⁾ For PL214x-SH option. Outputs are not simultaneous. Please inquiry for pulse energies at other wavelengths. ³⁾ For PL214x-TH option. Outputs are not simultaneous. Please inquiry for pulse energies at other wavelengths. ⁴⁾ For PL214x-FH option. Outputs are not simultaneous. Please inquiry for pulse energies at other wavelengths. ⁵⁾ Averaged from 300 pulses. ⁶⁾ Optional <25 ps duration. ⁷⁾ Measured over 1 hour period when ambient temperature variation is less than ±1 °C. ⁸⁾ Should be specified while ordering. Inquiry for other pulse repetition rates. ⁹⁾ Delay is negative, SYNC OUT pulse emerge earlier than optical pulse. ¹⁰⁾ In respect to optical pulse. <100 ps jitter is provided with PRETRIG option. ¹¹⁾ Full angle measured at the 1/e2 point @ 1064 nm. ¹²⁾ RMS value measured from 300 shots. ¹³⁾ Beam diameter is measured @ 1064 nm at the 1/e² point. ¹⁴⁾ Single phase 208–240 VAC mains for 10 Hz versions are available. Options Option PRETRIG provides low jitter pulse for streak camera triggering Option P25 provides less than 25 ps output pulse duration:
Model	PL2240	PL2241	PL2241A	PL2241B	PL2241C
Pulse duration (FWHM), ps	<25
Option P80 provides less than 80 ps output pulse duration:

Model	PL2240	PL2241	PL2241	PL2241	PL2241
Pulse energy at 1064 nm, mJ	8	60	100	160	200
Pulse duration (FWHM), ps	<80

Requests for custom made products are welcome
