Specifications 1)

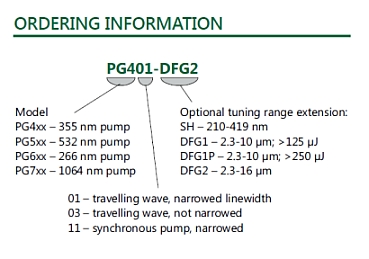

| Model |
PG401 |
PG501 |
PG601 |
PG701 |
| Tuning range |
| Signal |
420-680 nm |
680-1063 nm |
320-500 nm |
1395-2100 nm |
| Idler |
740-2300 nm |
1065-2300 nm |
580-1580 nm |
2200-4500 nm |
| Tuning curve |
Fig.5 |
Fig.6 |
Fig.7 |
Fig.8 |
| Output pulse energy 2) |
> 1000 µJ at 450 nm |
> 1000 µJ at 800 nm |
> 700 µJ at 350 nm |
> 600 µJ at 1550 nm > 300 µJ at 3700 nm |
| Linewidth |
< 6 cm-1 |
< 6 cm-1 |
< 15-200 cm-1 3) |
< 6 cm-1 |
| Max pulse repetition rate |
50 Hz |
| Scanning step |
| Signal |
0.1 nm |
| Idler |
1 nm |
| Typical beam size 4) |
~4 mm |
| Beam divergence 5) |
< 2 mrad |
< 2 mrad |
< 8 mrad |
< 4 mrad |
| Beam polarization |
| Signal |
horizontal |
vertical |
horizontal |
horizontal |
| Idler |
horizontal |
horizontal |
horizontal |
vertical |
| Pump laser requirements |
| Pump energy |
10 mJ at 355 nm |
10 mj at 532 nm |
7 mJ at 266 nm |
15 mJ at 1064 nm |
| Recommended pump source 6) |
PL2251A-TH |
PL2251A-SH |
PL2251A-SH/FH |
PL2251 |
| Physical characteristics |
| Size (WxHxL) |
450x270x582 mm |
| Operating requirements |
| Room temperature |
15-30 °C |
| Mains voltage |
100-240 V single phase, 47-63 Hz |
| Power consumption |
< 100 W |
1) All specifications are subject to change without notice. Parameters marked typical are not specifications. They are indications of typical performance and will vary with each unit we manufacture. Unless stated otherwise all specifications are measured at 450 nm for PG401 units, 800 nm for PG501 units, 350 nm for PG601 and 1550 nm for PG701 units.
2) See tuning curves for typical pulse energies at other wavelengths.
3) Depends on output wavelength.
4) Beam diameter is measured at the 1/e2 point.
5) Full angle measured at the FWHM point.
6) If a pump laser other than the PL2251 series is used, measured beam profile data should be presented when ordering.
|
